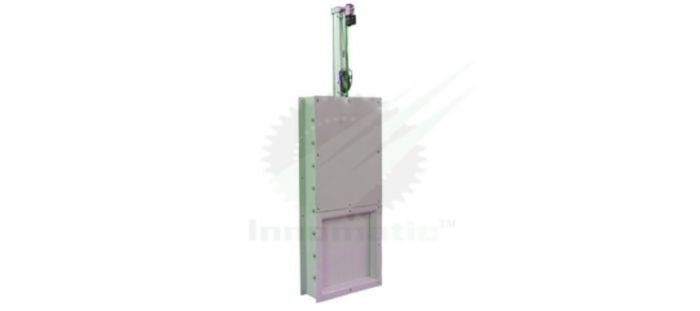

Slide Gate Valve

IR-PL slide gate valve are specifically designed to be used on dry bulk materials, free-flowing solids, granules or powder. Slide gate valve is installed horizontally in a vertical pipe,also used in industrial pipeline for on-off operation. It is a fabricated square or rectangular port low pressure for highly solid loaded fluids or solids, mainly used in bulk handling and silo outlet applications in industries. Special construction materials such as stainless steel, aluminum, abrasion resistant metals and special coatings are available.

Slide gate Valves can be operate   with manual or  actuators, including hand wheel, chain wheel, pneumatic cylinder or electric actuators. Valves are available in round, square ,rectangular  end connection configuration’s.

MATERIAL HANDLING SLIDE GATE VALVE  SPECIFICATIONS

SIZE RANGE:  up to 1200 NB , Through 48"

Body : Carbon steel, Steel Stainless Steel, Hastelloy, Inconel, Monel and Titanium.

Gate : Steel Stainless Steel, Hastelloy, Inconel, Monel and Titanium.

Seat: Metal to Metal , Resilient

Operations :  Manual ,Actuators, Hand Wheel, Chain Wheel, Pneumatic Cylinder ,Electric Actuators ,Hydraulic Cylinder.

Benefits

• Easy installation
• Easy for Maintenance
• Replacement of the gate and seat
• Easy access for inspection
• Full Bore Material Flow
• Fast Closing & Opening
• Low Maintenance
• Long Operating Life Capable of handling fine

Features

• Robust and reliable valve design
• Easily adapted from square to round outlets or ducts
• Product contact parts can be manufactured in a different material to the main valve body
• Reduced material hang-up and wear of blade support rollers
• long service life with massively reduced downtime

Material Which Handle

• Ash
• zircon
• Coal Dust
• Alumina
• Sand
• Fly Ash
• Salt
• Gypsum
• Flour
• Sugar
• Cement
• Soda Ash
• Stellite
• Tungsten Carbide
• Pulse Fusion

Slide Gate Valve Application

• Power plant
• Cement Plant
• Pharmaceutical  industries
• Chemical industries
• Sugar plants
• Mining
• Coal plant.

 Applications In Various Process:

• Silo/Hopper Discharge
• Powder Mixture Discharge
• Screw Conveyors Discharge
• Fluidisation Tanks Discharge
• Fluid Bed Dryers
