Switch Valve Assembly

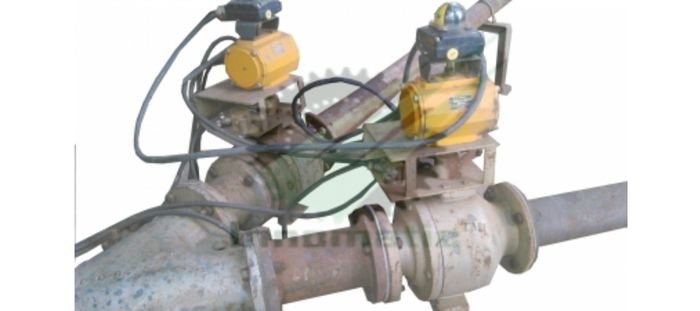

Switch valve are superior deigned widely used in pneumatic conveying or material handling systems. These are basically installed where there are two branches are connect in a single line or used for divert single line in two branches. Switch valve assembly are come with dome valve and alloy cast iron Y-Piece with variety of flange end connections

Switch valve are suitable for Ash ,cement,coal, powder, abrasive materials and also sustained high temperature. Construction for valve and  Y piece  are suitable for  pressure  flow and gravity flow lines.

Design Specification

• Sizes : 50 NB upto to 300 NB (4'' up to 12'') higher on request
• Moc : Cast Iron, Cast Steel, Alloy Cast Iron SS304 , SS 310 & SS 316

Mode of Operation:

• Electrical actuator
• Pneumatic actuator
• Pneumatic cylinder
• Hydraulic  cylinder

Features:

• Full Bore Material Flow
• Cavity Free Construction
• Fast Closing & Opening
• Low Maintenance
• Long Operating Life Capable of handling fine
• Grain materials and head abrasive products.

Applications :

• Cement plants
• Power plants
• Sugar industries
• Pulp and paper industries

MATERIAL HANDLES :

• Ash
• Cement
• Powders
• Granules
• Ores
• Minerals
